Woodward UA201115 U-Joint – .750-20 Spline (201) x .688-54 Spline (115)
Woodward UA201115 U-Joint – .750-20 Spline (201) x .688-54 Spline (115)
Standaardruiter 27A
Standaardruiter 27A
3905PT Veenendaal
Nederland
← Back to all Woodward Universal Joints

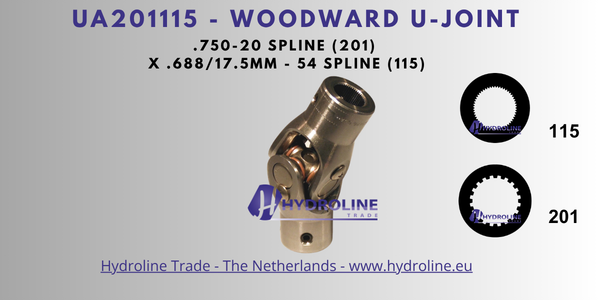

Genuine Woodward Steering UA201115 universal joint with .750"-20 Woodward spline (201) and .688"-54 spline (115).
Precision high-strength steering U-joint for professional motorsport, racing and custom steering systems.
- Woodward Part No.: UA201115
- Side 1: .750"-20 spline – Woodward 201
- Side 2: .688"-54 spline – Woodward 115
- Maximum angular misalignment: 32°
- Recommended operating angle: <20°
- Ultimate breaking torque: >300 lb-ft / >406 Nm
Woodward UA201115 U-Joint – .750-20 x .688-54 Spline
The Woodward UA201115 U-joint is a precision steering universal joint for professional motorsport and high-performance steering systems.
This configuration combines the Woodward 201 .750"-20 spline with a Woodward 115 .688"-54 spline, providing a direct and compact connection between steering components using these two different spline profiles.
Engineered for demanding steering applications, Woodward universal joints combine high strength, accurate spline engagement and minimal rotational play in a compact assembly.
Connection Specifications
| Specification | Side 1 | Side 2 |
|---|---|---|
| Woodward connection | 201 | 115 |
| Type | Splined | Splined |
| Nominal diameter | .750" | .688" |
| Spline count | 20 | 54 |
| Description | .750"-20 spline | .688"-54 spline |
Woodward 201 – .750"-20 Spline
The Woodward 201 connection uses Woodward's .750"-20 spline profile and is used throughout the Woodward professional steering component range.
Correct spline identification is important. Nominal diameter and tooth count alone do not guarantee compatibility, as the actual spline geometry must also correspond.
A generic .750"-20 spline should therefore not automatically be assumed to fit a Woodward 201 connection.

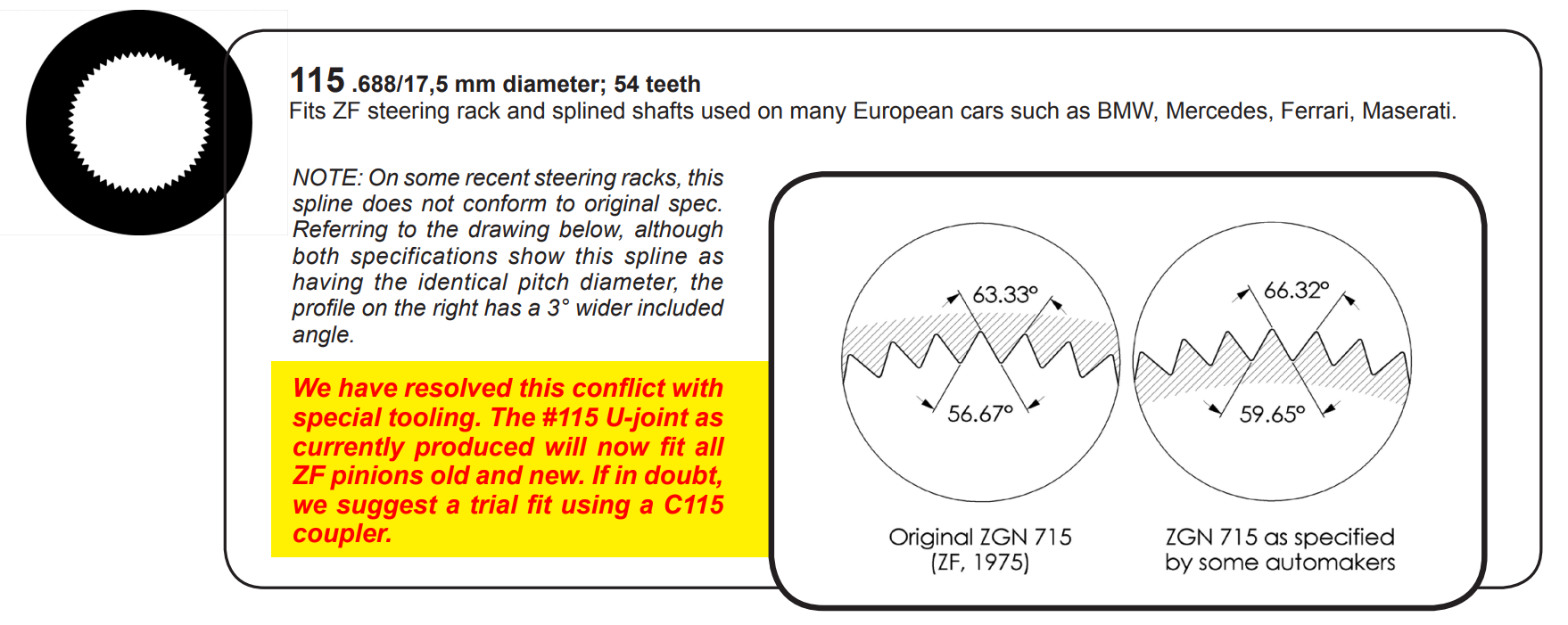

Woodward 115 – .688"-54 Spline
The second side of the UA201115 features the Woodward 115 spline, with a nominal diameter of .688" (approximately 17.5 mm) and 54 teeth.
This configuration allows a component using the Woodward 201 profile to be connected directly to a steering shaft or component with the corresponding 115 spline profile, eliminating the need for a separate spline adapter.
Always verify diameter, spline count and spline profile when selecting a steering U-joint.
Mechanical Specifications
| Specification | Value |
|---|---|
| Approximate joint weight (shipping weight: 1 kg) | 310 g* |
| Rotational clearance circle | 1.75" / 44 mm diameter |
| Maximum angular misalignment | 32° |
| Recommended operating angle | <20° |
| Torque resulting in bearing damage | >250 lb-ft / >339 Nm |
| Torque resulting in plastic deformation | >275 lb-ft / >372 Nm |
| Ultimate breaking torque | >300 lb-ft / >406 Nm |
*Joint weight varies by configuration; shipping weight is 1 kg. Failure torque thresholds are not permissible continuous operating loads.
Operating Angle
The Woodward UA201115 permits angular misalignment up to 32 degrees. For normal steering operation, Woodward recommends keeping the working angle below 20 degrees.
A smaller operating angle reduces angular velocity variation through the universal joint and helps maintain smooth and consistent steering response.
Where packaging requires a larger change in steering shaft direction, using two correctly phased U-joints and an intermediate shaft can provide a better solution than operating a single joint close to its maximum angle.
Professional Motorsport Steering Component
The compact design and high mechanical strength of the UA201115 make it suitable for demanding steering installations including:
- Professional motorsport
- GT and touring cars
- Prototype race cars
- Rally cars
- Track and competition cars
- Custom steering shafts
- Custom steering columns
- Purpose-built vehicles
Woodward U-joints are particularly useful in tightly packaged vehicles where the steering shaft must negotiate chassis tubes, suspension components, engine installations or other obstructions.
Hydroline supplies genuine Woodward Steering components for professional motorsport and performance applications, including universal joints, splined shafts and specialist steering components.
Need Another Woodward U-Joint Configuration?
Woodward universal joints are available with a wide variety of splined, plain bore and weld-on connections.
If UA201115 is not the correct configuration, contact Hydroline with the required Woodward connection number, shaft diameter and spline count. We can help identify the correct component for your steering system.
